Geometry:
Top Tube Length: 20.5"
Chain Stay Length: 13.25"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Stand Over Height: 8.5"
BB Height: 11.5"
Bar Height: 8.75"
Fork Offset: 28 mm
FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset
BRAKE MOUNTS: Welded
FORK: 1020 Hi-Ten Steel - 1-PC Steerer, Tapered Legs, 28 mm offset
BARS: 1020 Hi-Ten Steel, 8.75" Rise, 28.5" Width, 12° Back Sweep, 2° Up Sweep

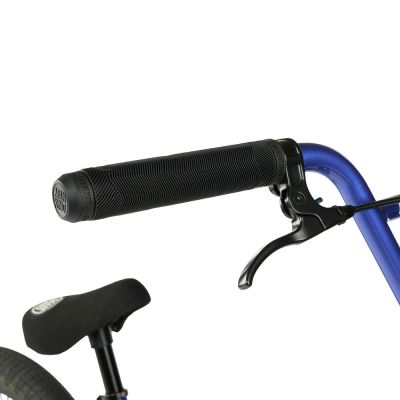

GRIPS: Mankind Control
BAR ENDS: Mankind Nylon

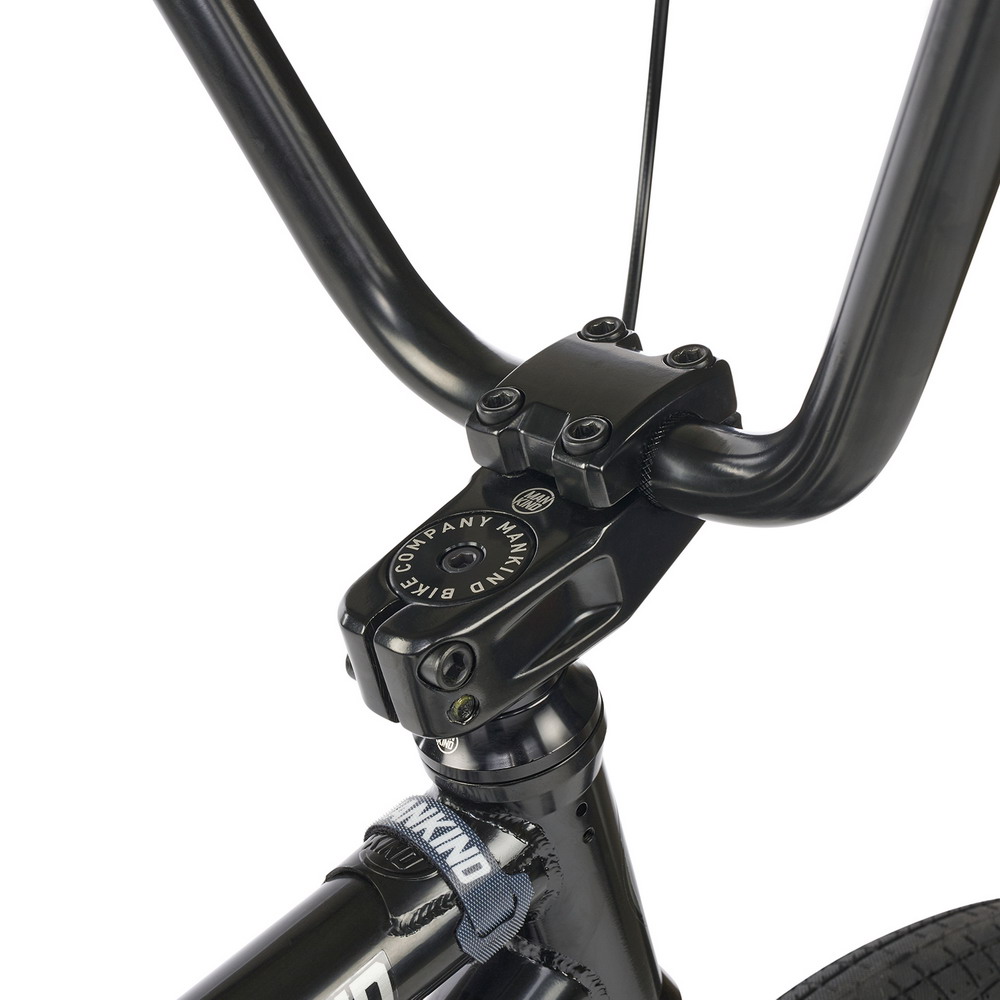

STEM: Mankind Control Top Load Stem - Alloy - 50 mm reach
HEADSET: Mankind Control Integrated, Sealed Bearings

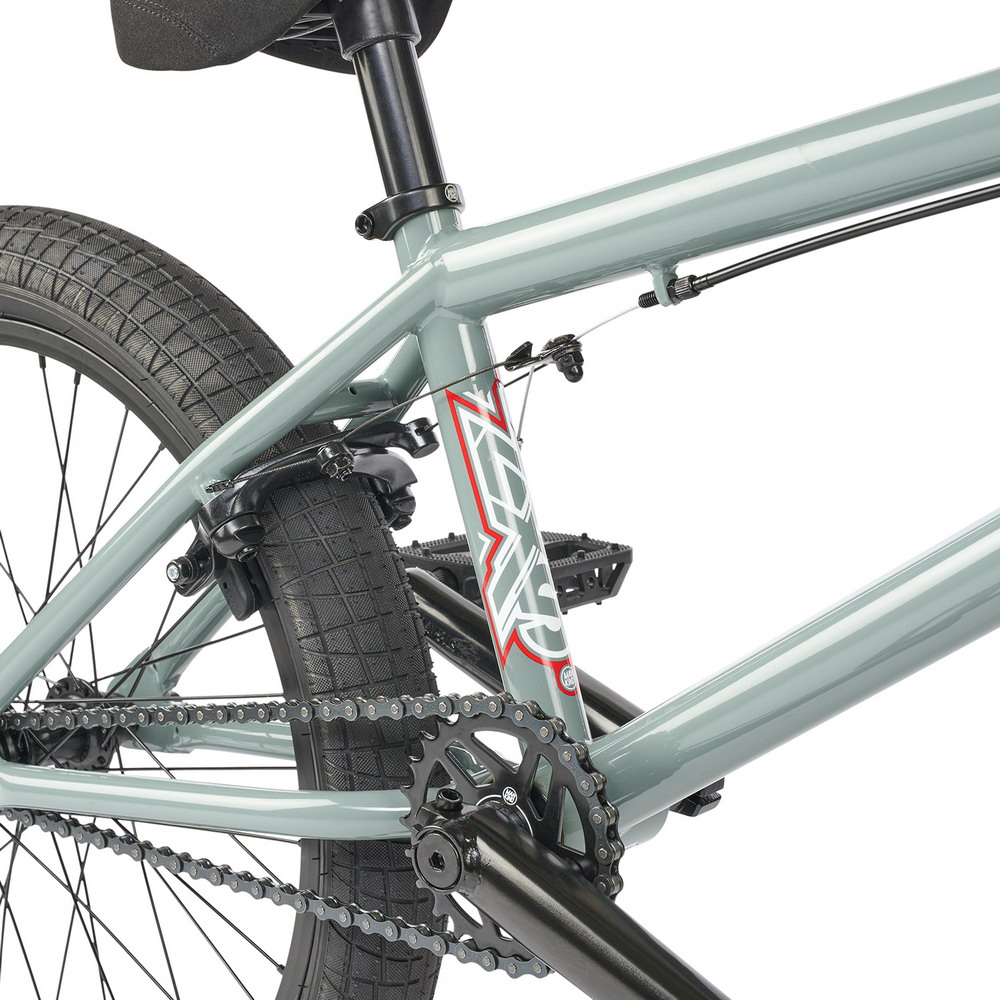

BRAKE: Alloy U-brake
BRAKE LEVER: Alloy Lever - 2-Finger Design

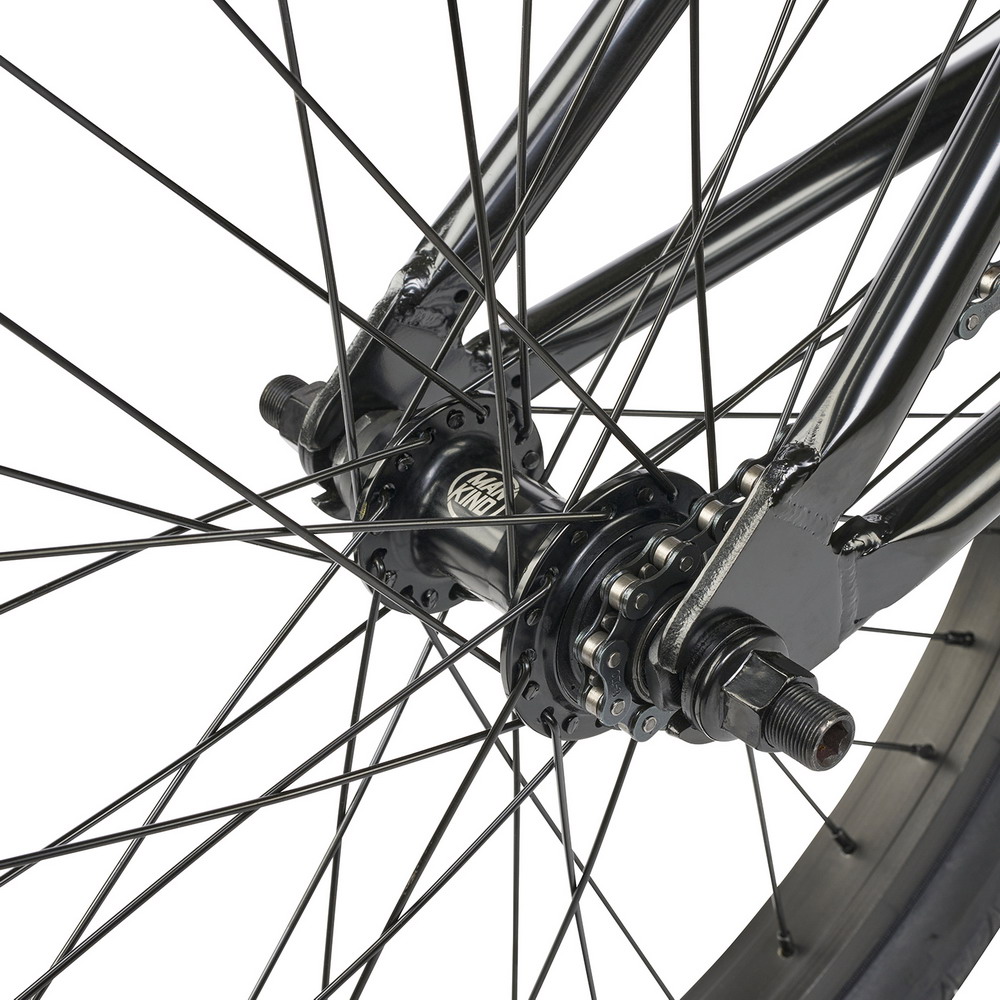

REAR HUB: Mankind Control Cassette Hub – Sealed - 14 mm axle - 9t Driver
FRONT HUB: Steel - Loose Ball - 3/8" (10 mm) axle

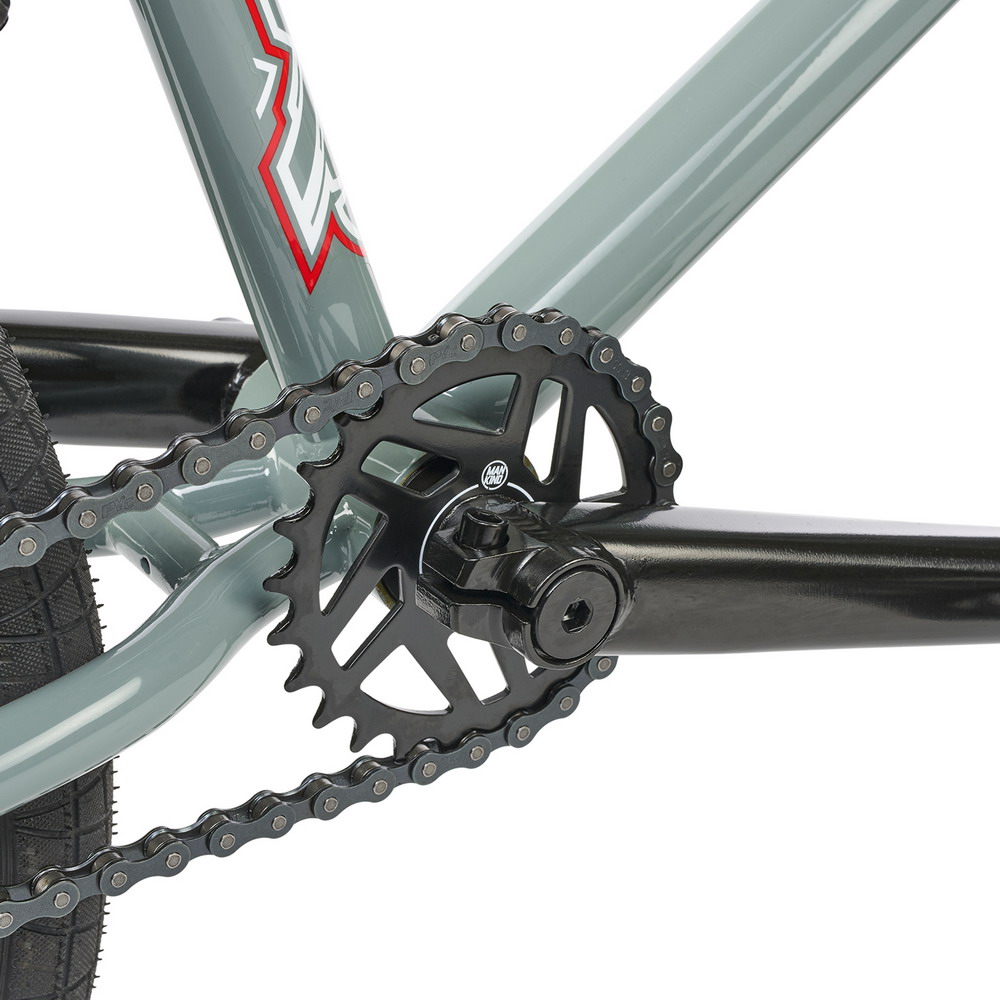

SPROCKET: Mankind Control Steel 25t
CRANKS: Chromoly – 8-Spline - 3-Piece - 170 mm Length - 19 mm Spindle
BOTTOM BRACKET: Mid BB, Sealed Bearings - 19 mm
CHAIN: PYC 410 - black
PEDALS: Plastic Platform
RIMS: 6061 Alloy - Single Wall 36H
SPOKES: Steel Spokes – 14 mm nipples - black
TIRES: Park/Street Tire 20" - 60 PSI (4.1 bar) - 2.3" Width
PEGS: None

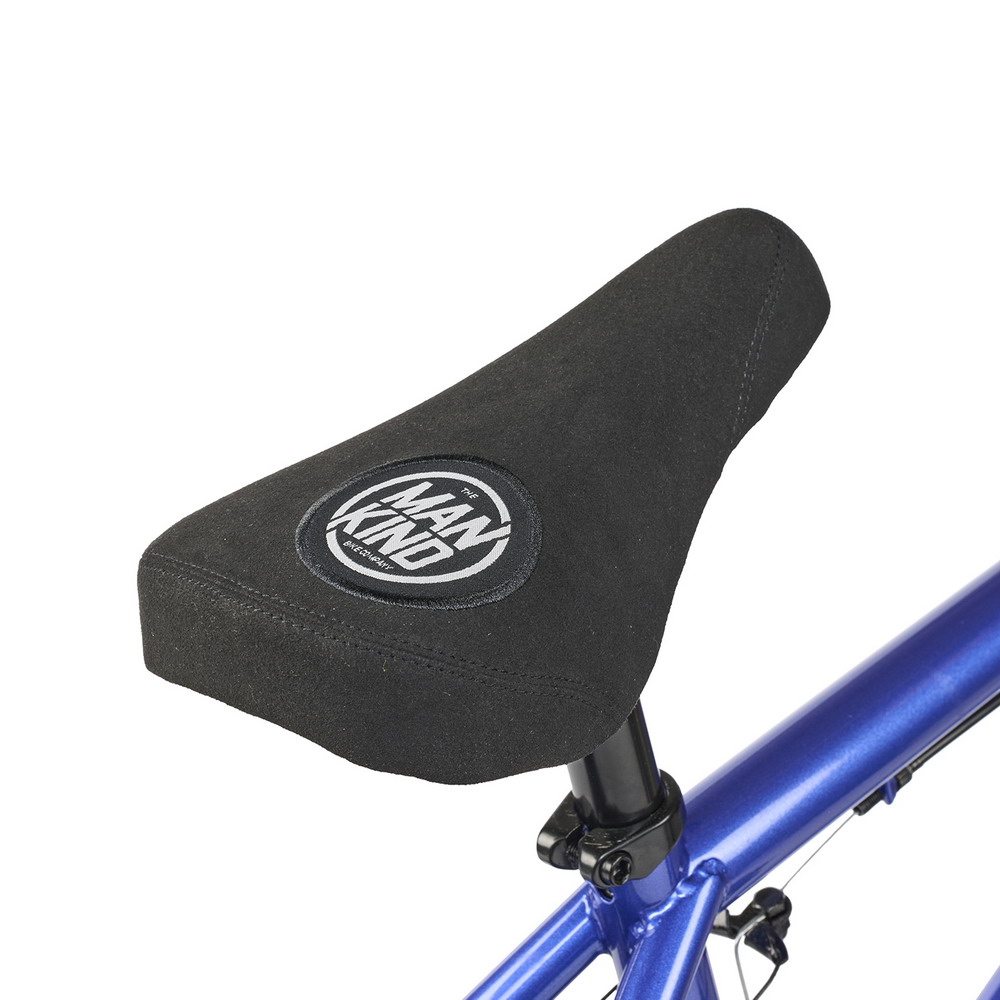

SEAT: Mankind NXS Mid Seat/Post Combo, Mankind Logo Patch
SEAT POST: Seat/Post Combo
SEAT CLAMP: Mankind Alloy - black
WEIGHT: 10.7 kg
