Geometry
Top Tube: 22"
Chain Stay: 14.25"
Head Tube: 75°
Seat Tube: 71°
Stand Over: 9"
BB Height: 12"
Frame: 100% Chromoly
Brake Mounts: Removable
Fork: 100% Chromoly - 30 mm Offset
Bars: 100% Chromoly - 2pc, 8.5" Rise
Grips: SHADOW VVS DCR
Bar Ends: SUBROSA Nylon
Headset: RANT Bang Ur Integrated

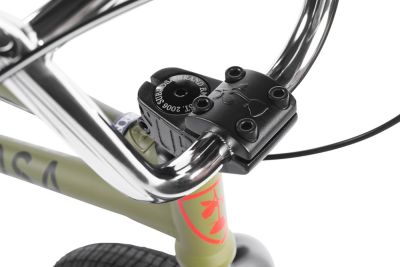

Stem: SUBROSA Rose Top Load
Rims: RANT Squad, 36H, Alloy, Double Wall

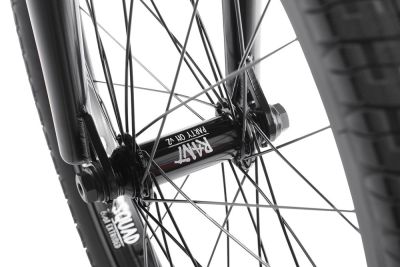

Front Hub: RANT Party On V2, Sealed, 10 mm, Female Axle
Rear Hub: RANT Party On V2 Cassette, 14 mm Axle, Sealed, 9t Driver
Tires: 22" x 2.30"

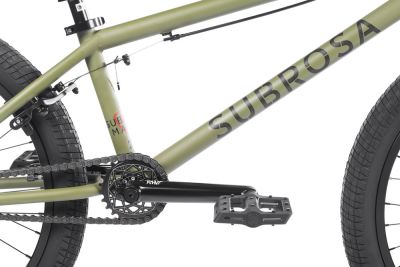

Cranks: RANT Bangin', Chromoly, 3-pc, 19 mm 8-Spline, 175 mm Length
Bottom Bracket: Sealed Mid BB
Sprocket: SUBROSA Petal Sprocket, Alloy, 25t
Chain: SHADOW Interlock V2 Half Link
Pedals: SHADOW Surface Plastic

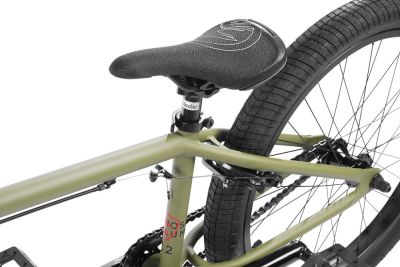

Seat: SUBROSA Mid 1-pc Combo (not pictured)
Seat Clamp: Alloy, Quick Release

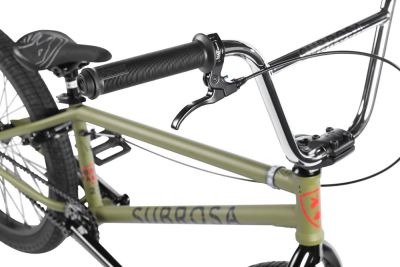

Brake Lever: RANT Hinged

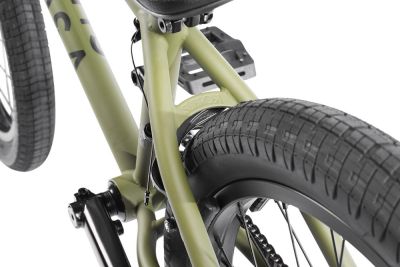

Brakes: RANT Spring Brakes V2
Weight: 12.97 kg
