Geometry
Top Tube Length: 20.25"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chain Stay Length: 13.25"
Standover Height: 7.8"
BB Height: 11.8"
Frame: 1020 Hi-Ten, Welded Brake Mounts, Embossed Logo Down Tube Gusset, 14 mm Axle Slot
Forks: Chromoly Steerer Tube, 1020 Hi-Ten Steel Legs
Bars: 1020 Hi-Ten Steel, 8.25" Rise, 27" Width, 1.5° Up Sweep, 11° Back Sweep
Grips: United Mushroom JR & United Bar Ends

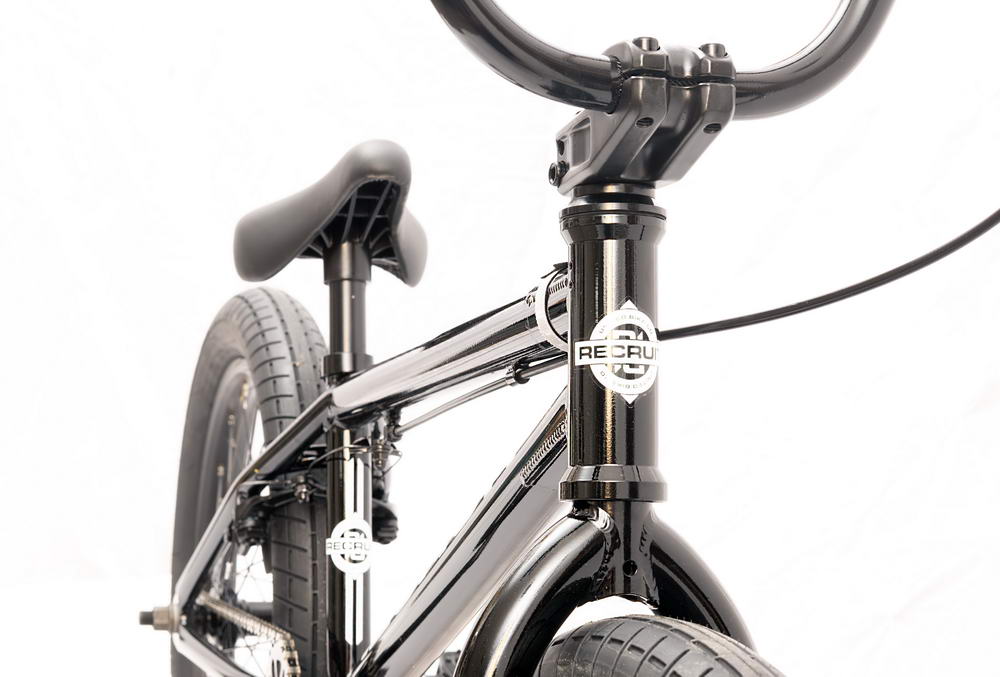

Headset: 1 1/8" A-Head
Stem: United 50 mm Reach Top Load Stem
Rear Lever: Alloy
Rear Brake: 990 U-Brake

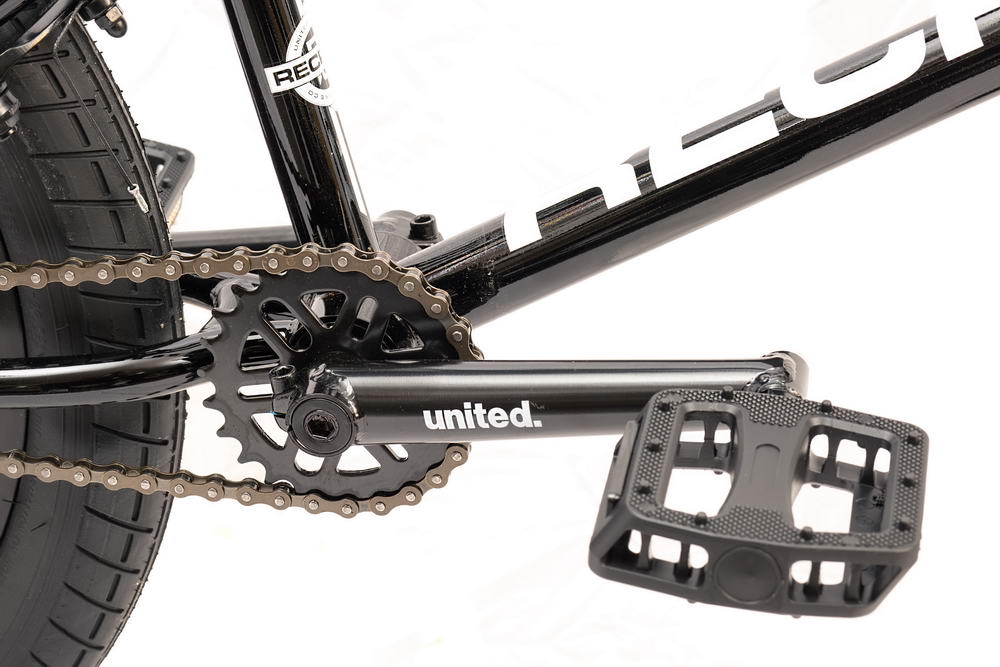

Cranks: Tubular, 165 mm Length, 3pc, 19 mm 8-spline w/ Printed United Logo
BB: Sealed Mid BB
Sprocket: 25t Steel
Pedals: United Supreme Plastic
Chain: X410
Rims: Alloy 36h Single Wall
Rear Hub: Sealed Cassette Hub w/ 14 mm Chromoly Axle, 9t Driver, 36h
Front Hub: 10 mm Axle, 36h
Rear Tire: United Direct 20" x 2.10"
Front Tire: United Direct 20" x 2.30"
Seat: United Seat / Post Combo
Seatpost: United Seat / Post Combo, 25.4 mm Diameter
Seat Clamp: Alloy
