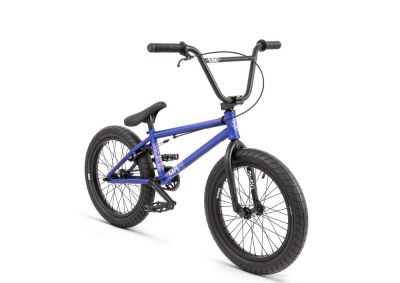

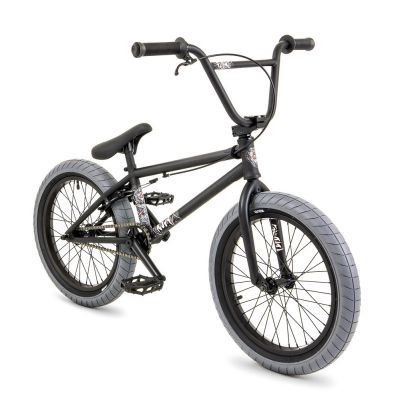

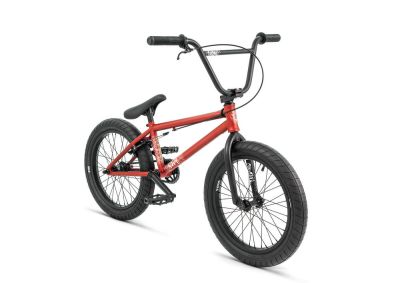

BMX-Bike Fly Bikes Nova 18"

Top Tube Length: 17.5"
Chainstay Length: 11.6"
Headtube Angle: 75°
Seattube Angle: 71°
Standover Height: 8"
BB Height: 10.5"

Frame: 4130 Chromoly down tube / 1020 Hi-Ten steel, welded brake mounts
Fork: 4130 Chromoly steerer tube, 1020 Hi-Ten steel legs, 25 mm offset
Bar: 1020 Hi-Ten steel, 7.5" rise, 25" width, 10° back sweep, 2° up sweep
Grips: Flybikes Ruben, 135 mm long, Flybikes barends
Stem: Trebol Mini Topload, forged 6061-T6 aluminium, 40 mm reach
Headset: Trebol Baja integrated, sealed bearings

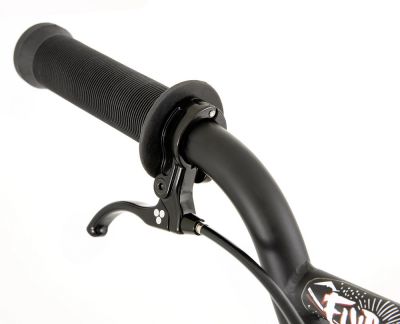

Brake Lever: Trebol Mini, die cast aluminium, right
Brake: Trebol Springhanger, forged 6061-T6 aluminium
Crank: Trebol 3-pc, 4130 Chromoly, 152 mm arm length
Bottom Bracket: Spanish BB, sealed bearings
Sprocket: Trebol, CNC machined 6061-T6 aluminium, 25T

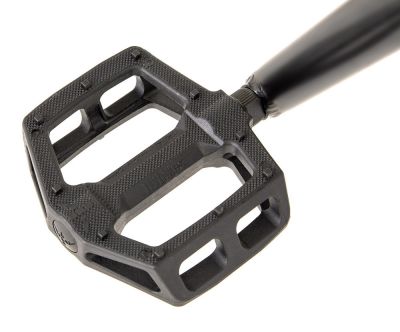

Pedals: Flybikes Ruben Graphite, Nylon-Fiberglass compound
Chain: 510, 64 links
Rims: Trebol, double side wall, 6061-T6 aluminium, 36h
Front Hub: alloy shell, loose ball, 10 mm axle, 36h
Rear Hub: Trebol Cassette, sealed bearing, 14 mm axle, 36h, 9T driver
Tires: Flybikes Fuego 18" x 2.2" front and rear, 60 tpi casing, max. 65 psi (ca. 4.5 bar)

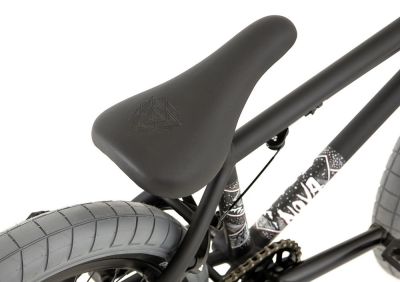

Seat: Nova Seat-Combo, 100% synthetic leather, 7 mm thick padding
Seat Clamp: Integrated
Weight: 9.8 kg
