Geometry
Top Tube: 23.5"
Chain Stay: 18.1"
Head Tube: 72°
Seat Tube: 71°
Stand Over: 16"
BB Height: 12.1" / 60 mm drop
Frame: 100% Chromoly, Unique Double Top Tube
Brake Mounts: V-Brake, welded
Fork: 100% Chromoly - 30 mm Offset

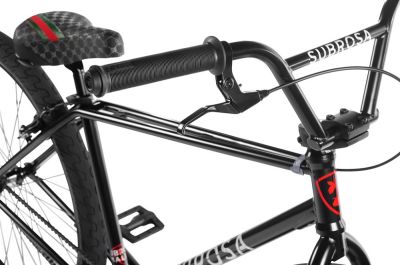

Bars: 100% Chromoly - 4pc, 6.5" Rise
Grips: SHADOW VVS DCR
Bar Ends: SHADOW Nylon

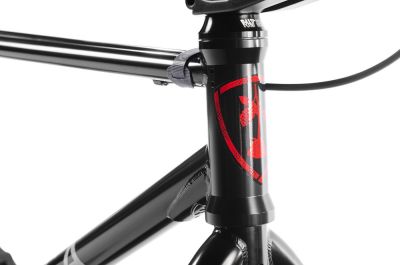

Headset: RANT Bang Ur Integrated

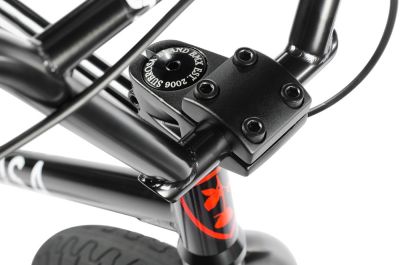

Stem: SHADOW Treymone Top Load
Rims: RANT Squad 29", 36H, Alloy, Double Wall

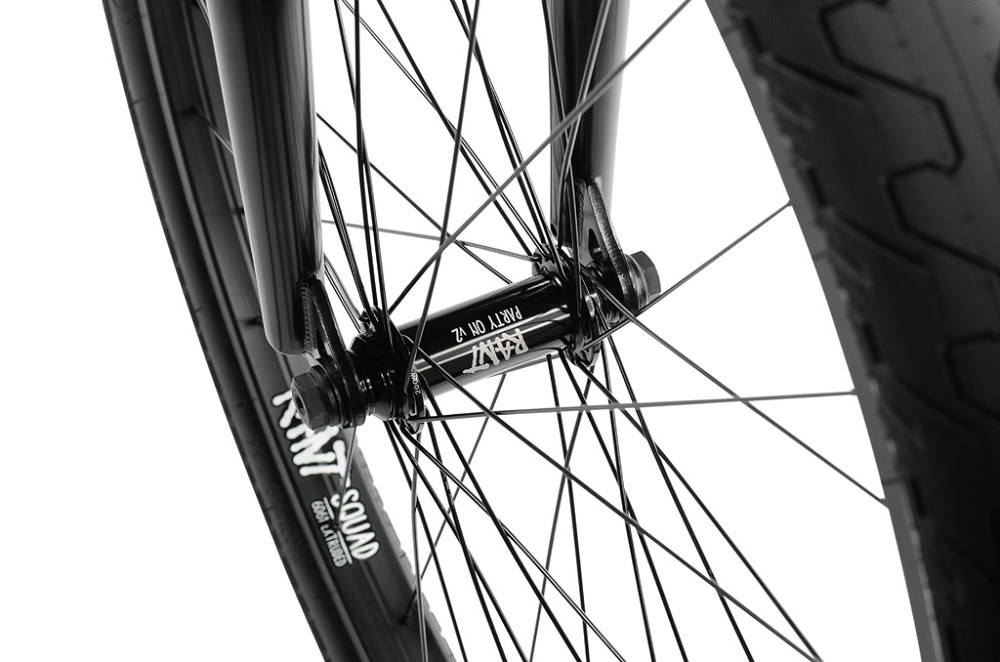

Front Hub: RANT Party On V2, Sealed, 10 mm, Female Axle

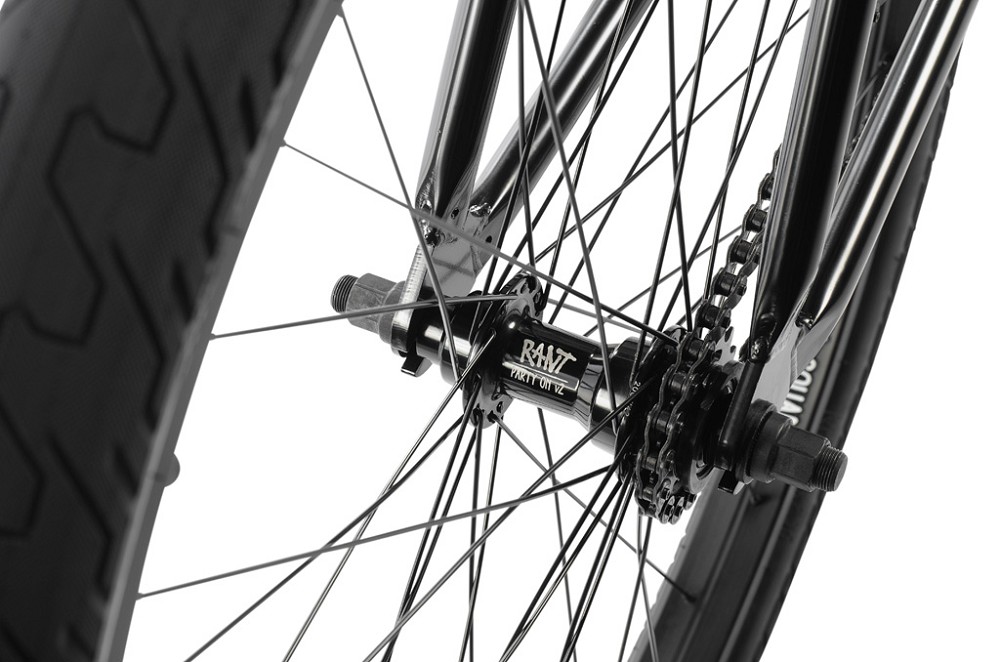

Rear Hub: RANT Party On V2 Cassette, 14 mm Axle, Sealed, 11t Driver
Tires: RANT Squad 29" x 2.35"

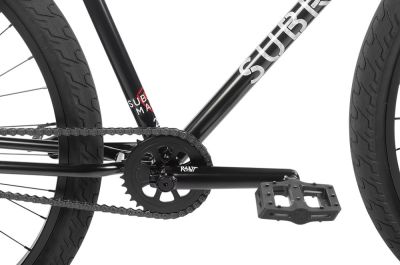

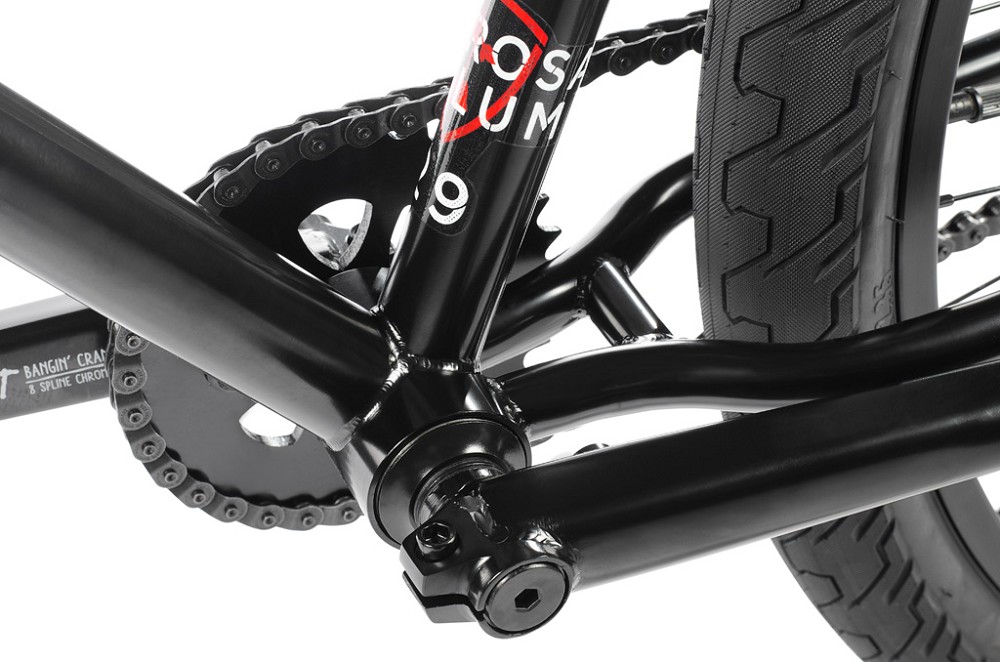

Cranks: RANT Bangin', Chromoly, 3-pc, 19 mm 8-Spline, 175 mm Length
Bottom Bracket: Sealed Mid BB
Sprocket: SUBROSA Petal Sprocket, Alloy, 32t
Chain: SHADOW Interlock V2 Half Link
Pedals: SHADOW Surface Plastic

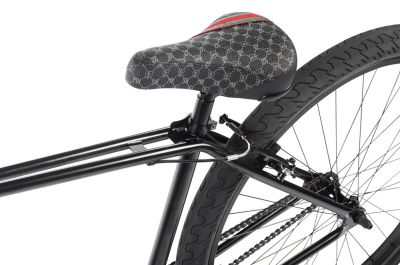

Seat: SUBROSA Designer Bike Life Railed
Seat Post: Railed
Seat Clamp: Alloy, Quick Release
Brake Lever: Alloy

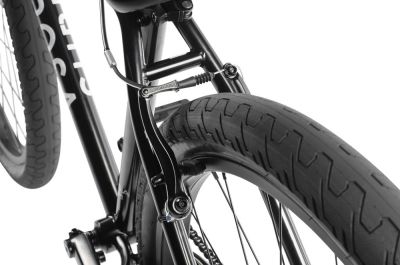

Brakes: V-Brake
Weight: 14.1 kg
