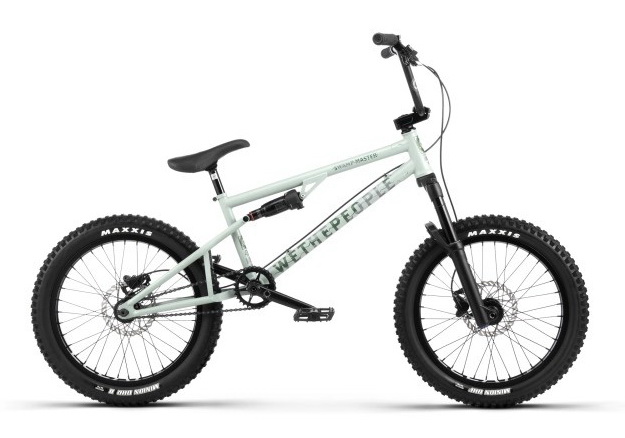

- FRAME: WETHEPEOPLE "SWAMP MASTER" FRAME, 4130 FULL CRMO, ROCKSHOX MONARCH RL SHOCK - 152X31
- FORK: MANITOU "MACHETE J-UNIT EXPERT" FORK, CUSTOM TUNED, 100MM TRAVEL, THRU-AXLE
- BARS: WETHEPEOPLE "SWAMP MASTER" BAR, POST LIQUID HEAT-TREATED 4130 CRMO
- GRIPS: SALT "EX" GRIPS, 154MM, FLANGLESS
- STEM: ÉCLAT "BURNS TOPLOAD STEM, CNC ALLOY, 51MM REACH
- HEADSET: WETHEPEOPLE "COMPACT" INT. HEADSET, SEALED BEARING
- LEVER: BENGAL "ARES 3" DISC BRAKE LEVERS
- BRAKES: BENGAL "ARES 3" HYDRAULIC DISC BRAKES, 160 MM ROTORS
- CRANKS WETHEPEOPLE "LOGIC" TUBULAR 3PC CRANK, 22MM, CRMO, 175MM, 48 SPLINE
- BB: WETHEPEOPLE "COMPACT" BB, 22MM, PRESS FIT, SEALED BEARING
- PEDALS: WETHEPEOPLE "LOGIC" PEDALS, NYLON/FIBERGLASS
- CHAIN:
- ÉCLAT "DIESEL" CHAIN
- SPROCKET: WETHEPEOPLE "PATROL" SPROCKET, CNC, 6061-T6 ALLOY, 28T
- DRIVER:
- 1PC CASSETTE DRIVER, 9T, SEALED BEARING, 6 PAWL, 120 POE
- FRONT HUB: ÉCLAT "EXILE" DISC FRONT HUB, BOOST 120MM, FULLY SEALED, 15MM THRU AXLE, 36H
- REAR HUB: ÉCLAT "EXILE" DISC CASSETTE HUB, FULLY SEALED, 3/8" FEMALE BOLTS, 36H, 120 POE
- RIMS: ÉCLAT "BONDI" RIM, 38MM WIDE, FLASH WELDED, DOUBLE WALL, 36H
- SEAT: ÉCLAT "BIOS" PIVOTAL SEAT, SLIM PADDED
- SEAT POST: WETHEPEOPLE "TEAM" PIVOTAL SEAT POST, 200MM LONG, 6061-T6 ALLOY
- SEAT CLAMP: INTEGRATED SEAT CLAMP
- TIRES: KENDA "KAOS" TIRES, 20"X 2.6", FRONT & REAR
- WEIGHT: 14.5KG / 31.97LBS
Specs:
Top tube Length: 21.5"
Chain stay Length: 14.1"-14.8"
Head tube Angle: 71°
Seat tube Angle: 70°
BB Height: 12.15"
Standover Heigth:9.5"
